How Do I set Up my Nora Gen 2?

How Do I set Up my Nora Gen 2?



To learn more about the mobile Companion App and our road map go here

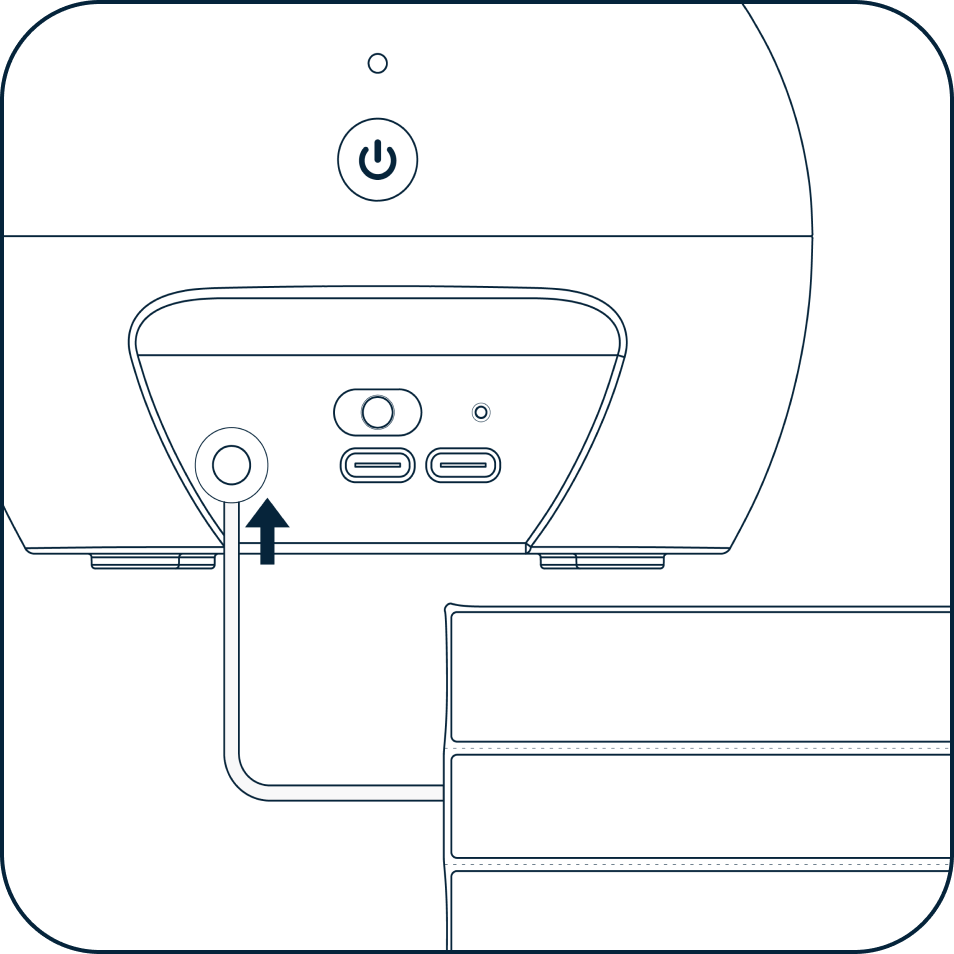

1. Connect Air Tube
Connect the Air Tube from the Pillow Insert into the Base.

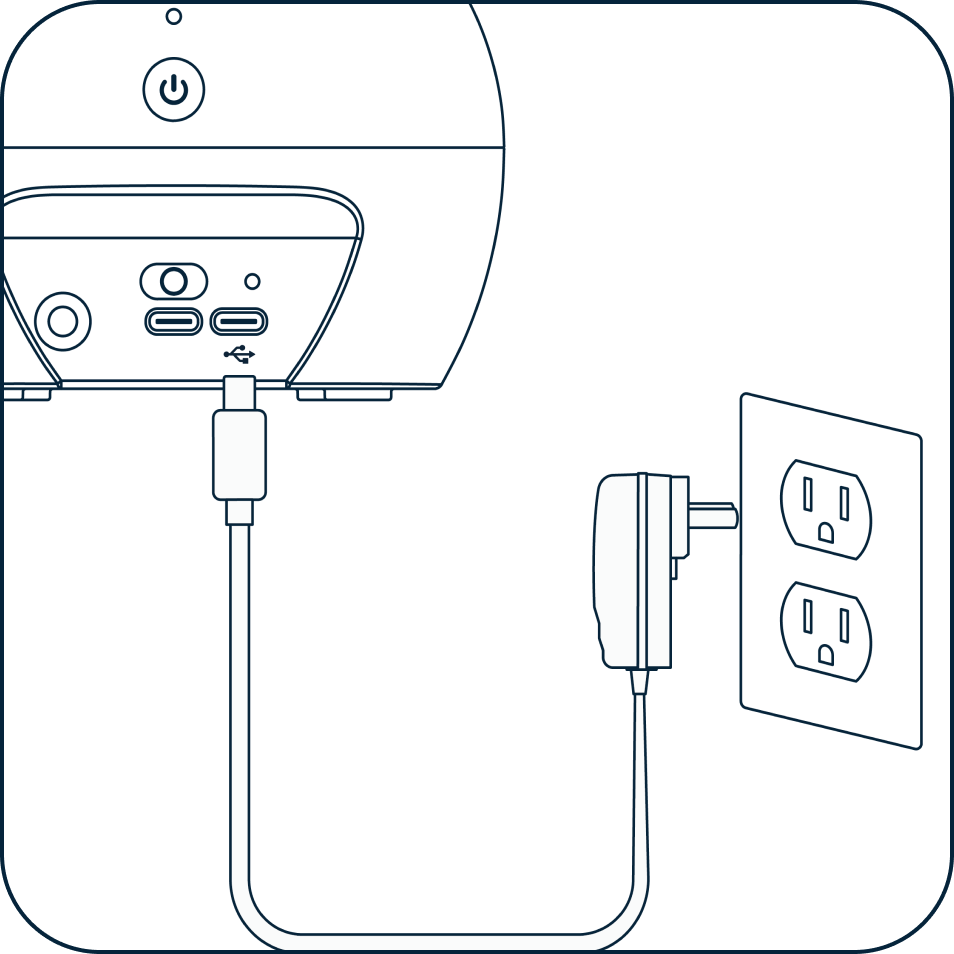

2. Connect Base Charger
Place Base Plug into Base Charger. Connect Base Charger into Base.
Plug the Base Charger into a power source. Place Base on the floor under your bed.

  1. The LED on Base flashed green when charging
  2. Once fully charged the batter lasts for 24 hrs

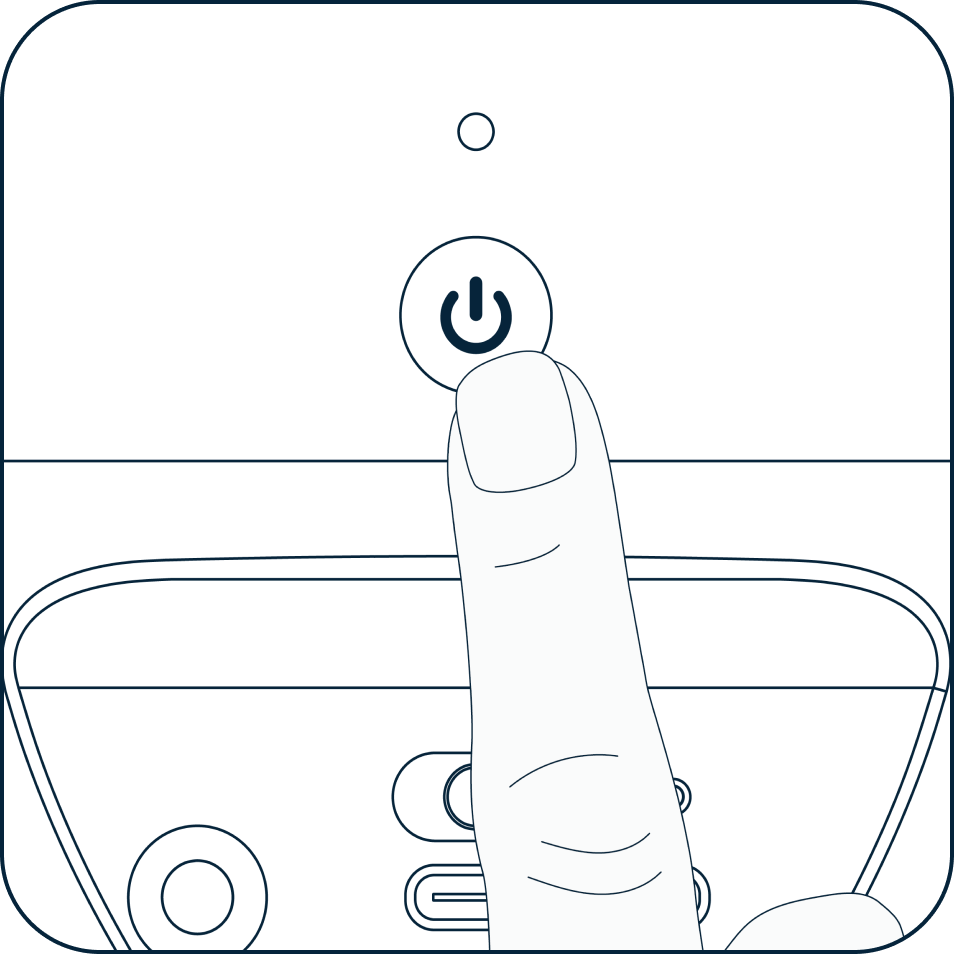

3. Turn the Base On
Press the power button to turn the Base On. White light will illuminate.

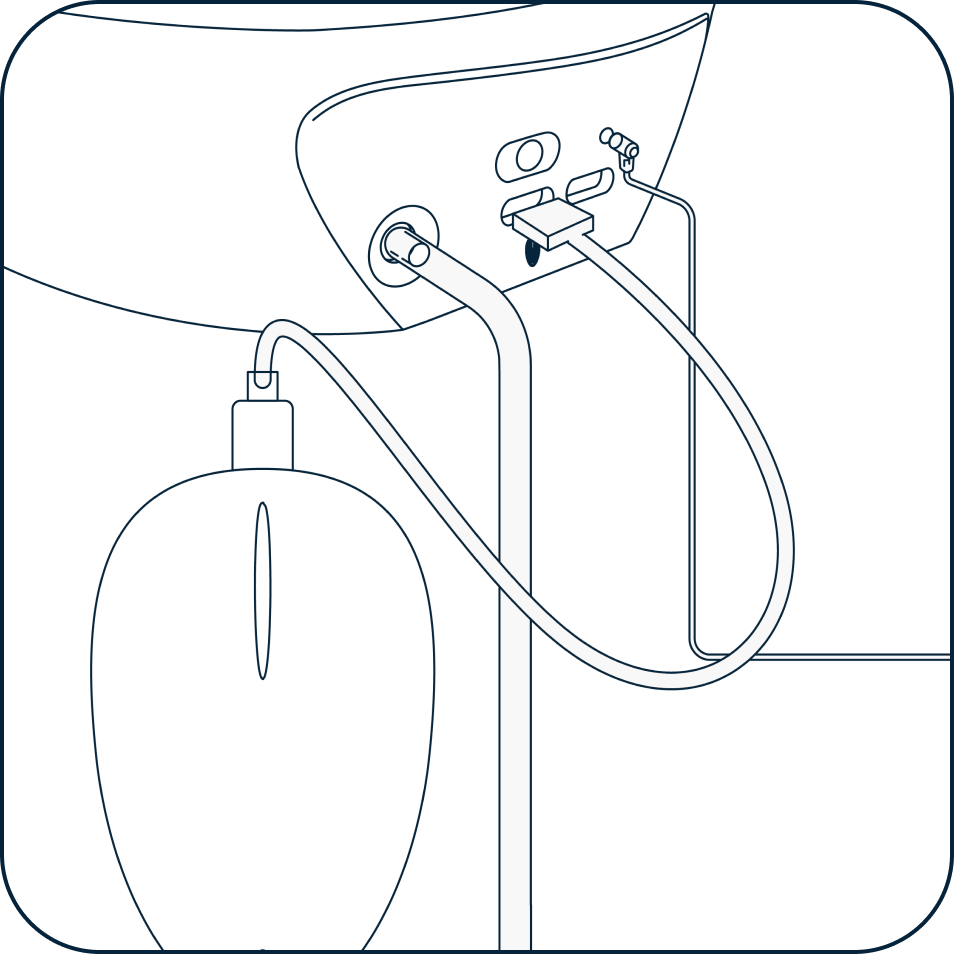

4. Connect the Pebble
Connect the Pebble to the Base with the USB cable.
Keep the Pebble plugged in for overnight use.

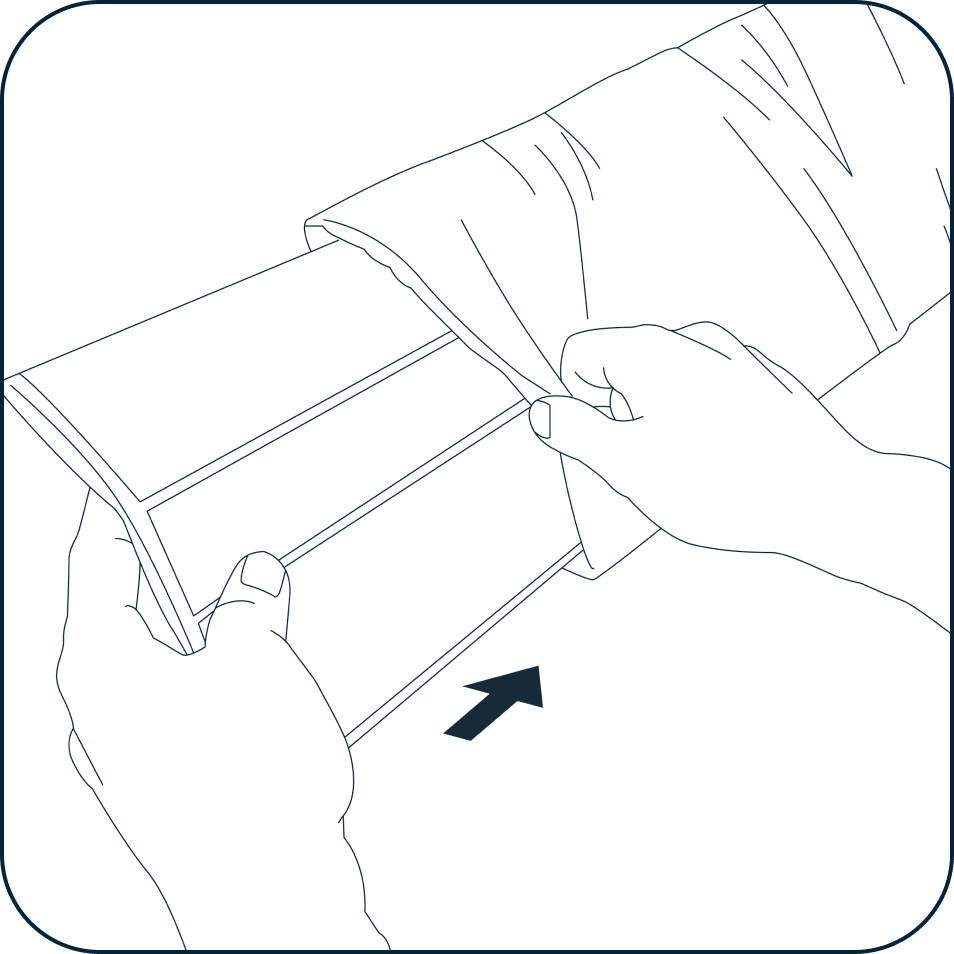

5. Slide Insert into Sleeve
Slide the Pillow Insert into the Comfort Sleeve.

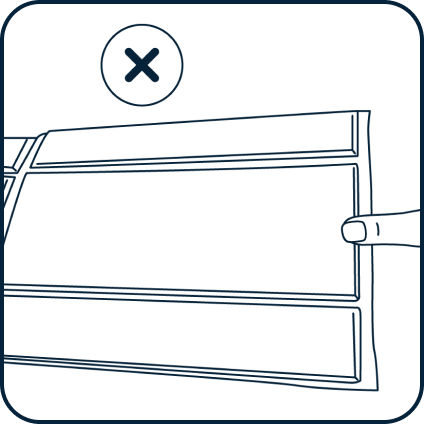

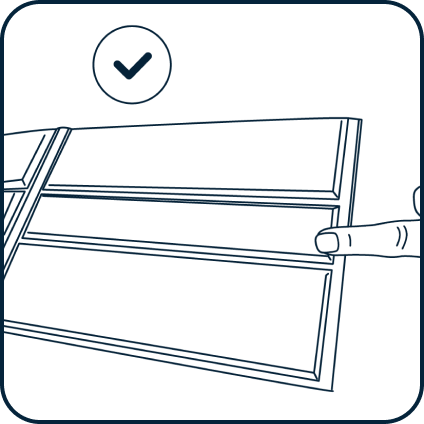

IMPORTANT:
Ensure the side with the thinner middle panel is facing up.

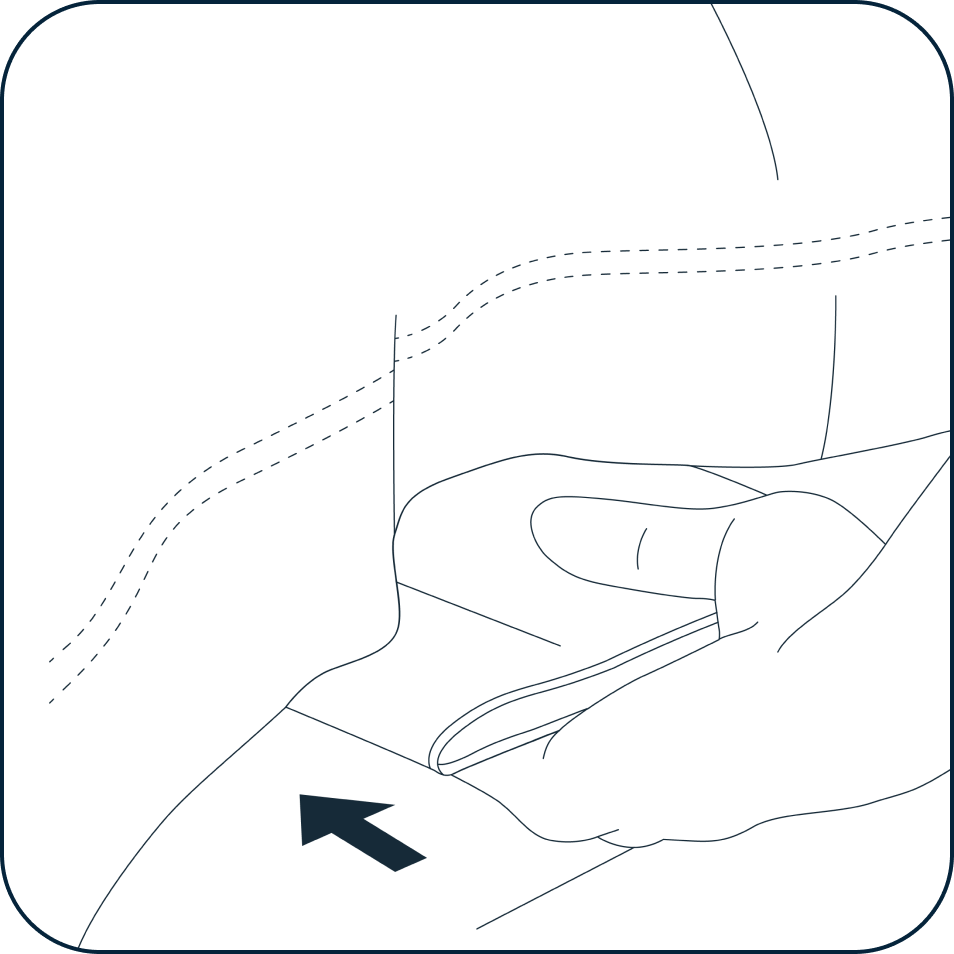

6. Slide Insert under pillow.
Slide the Comfort Sleeve under the pillow inside the pillow case.

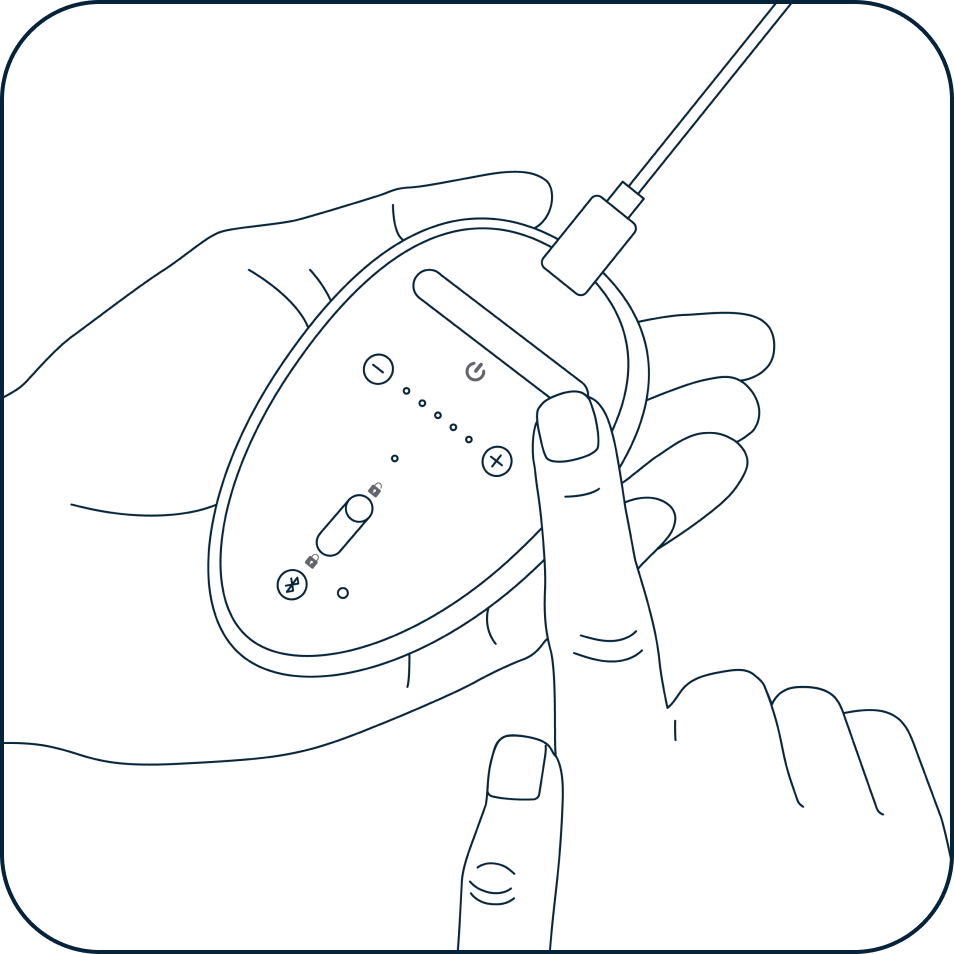

7. Turn the Pebble On
Unlock the Pebble. Press ON/OFF button to turn the Pebble on.


  1. Solid white light on top and bottom of the Pebble: On and ready.
  1. Blinking green and white light at bottom of the Pebble: On and charging.
  1. Blinking blue light: See troubleshooting for how to connect the Base and Pebble



8. Press Bluetooth
Press the Bluetooth button on the Pebble and watch
for the white light to flicker. The pump is now activated.


  1. Note: You can not test Nora's snore detection by pretending to snore. Our algorithm is tuned to detect naturally occurring snores only.



9. Test before sleeping
Put your head on your pillow. Press the Bluetooth button on the Pebble.
You should feel a gentle rise and fall (about 2 inches). Each rise and fall
cycle takes 1 minute to complete. It will not deflate unless pressure is
applied.


Setup is Complete!

Remember to give yourself 7 nights to get used to the movement of
your pillow. Smart Nora will fade into the background over time.
